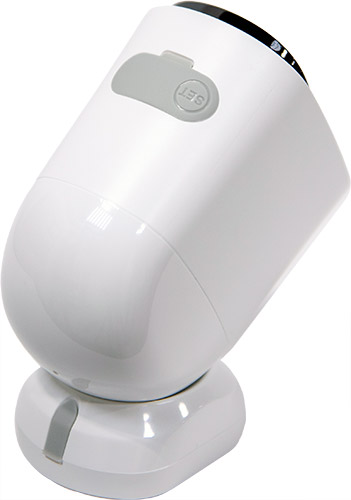

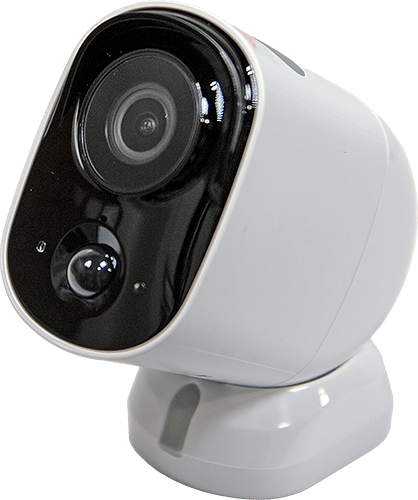

What Comes in the Box?

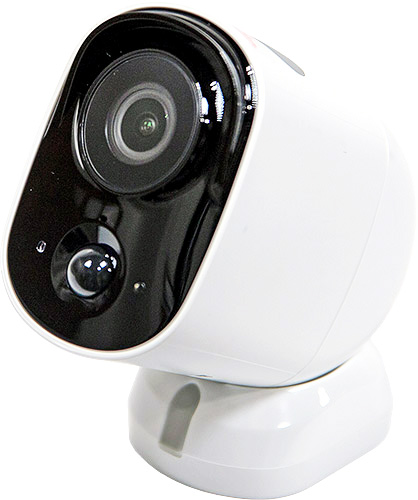

• Wireless Camera

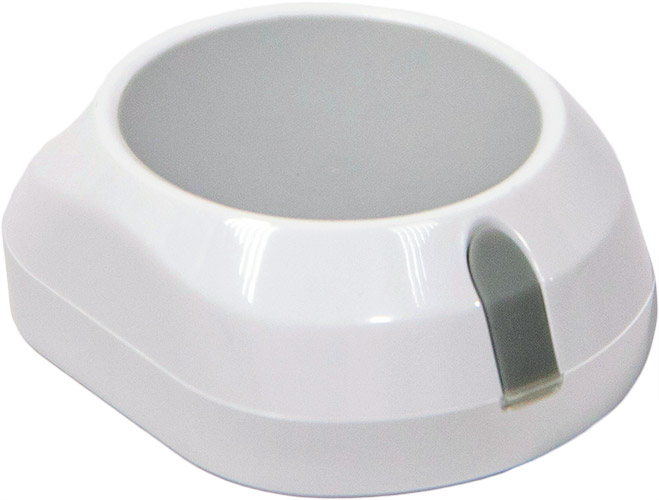

• Magnetic Base
• Pan Head Screw
• Adhesive Sticker

• Camera Stand
• Wall Anchors (3)
• Wall Screws (2)
• USB-C Charging Cable

Product Measurements

• Camera Height: 2.75 in
• Camera Width: 1.96 in

• Camera Depth: 3.38 in
• Camera Weight: 7.76 oz

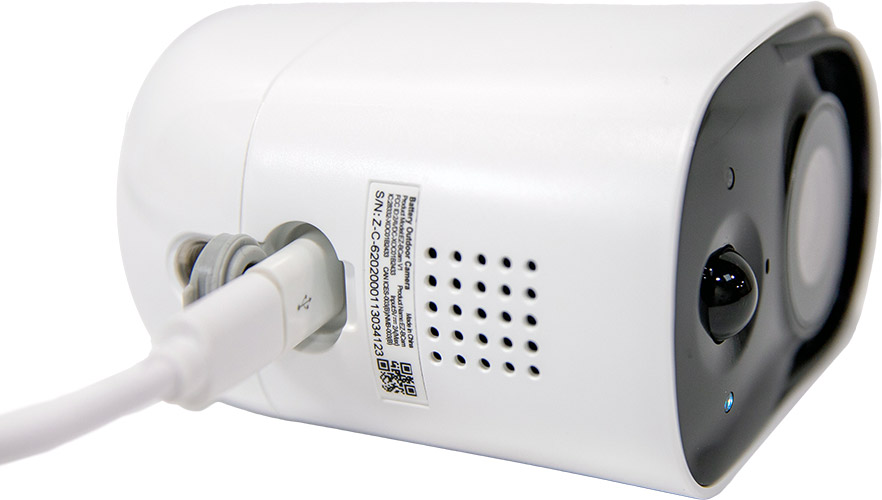

Charging

• The camera occasionally requires charging.
• The Security Panel and mobile app will alert you when it’s time to charge.

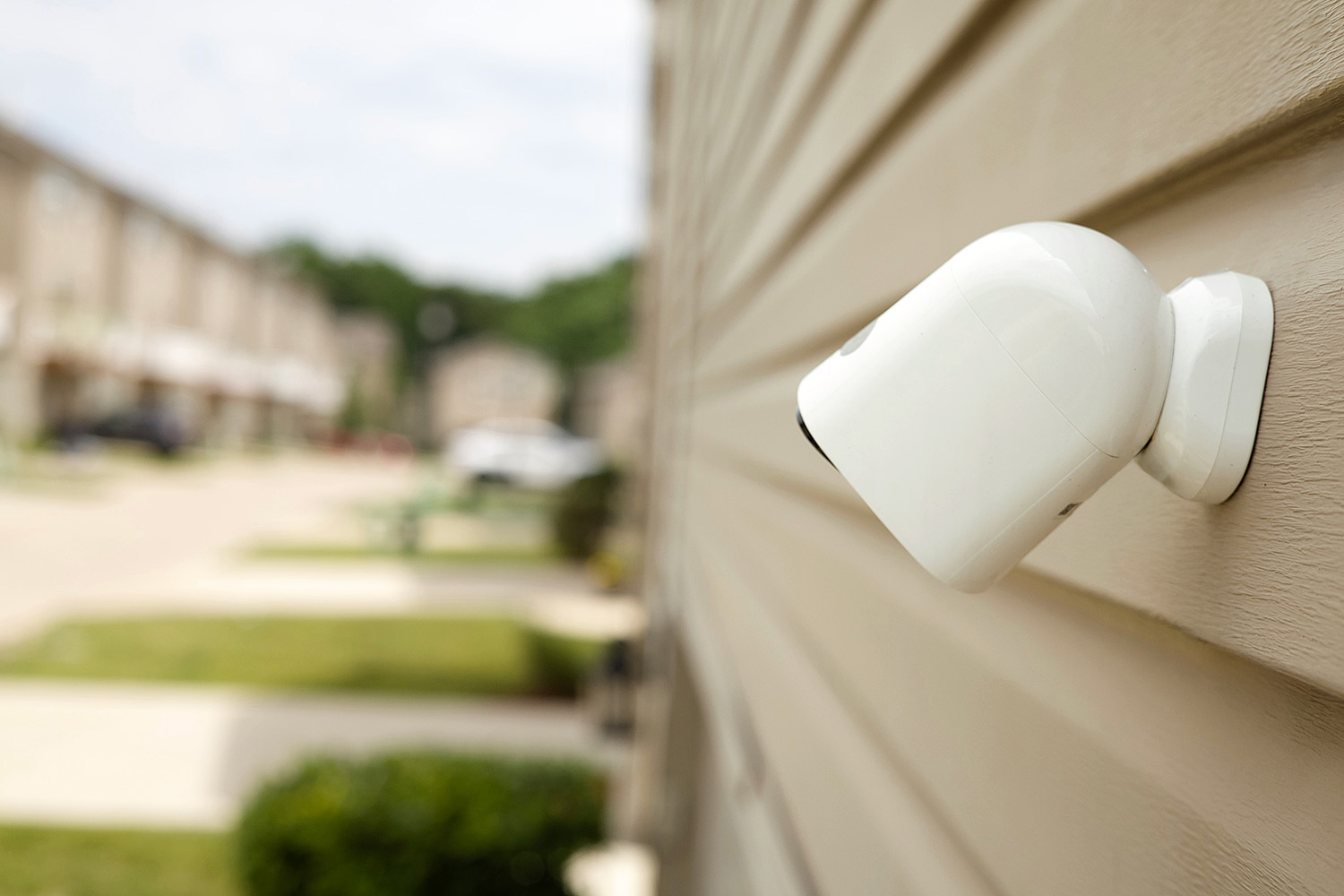

Placement Tips

• Suitable for indoor or outdoor use.
• To prevent false alarms, do not install near any heat sources.
• Make sure all gray weatherproofing seals are secure when using the camera outdoors.

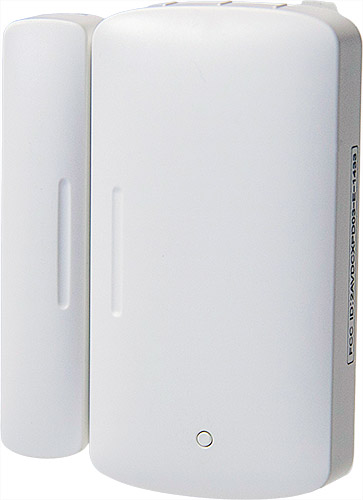

What Comes in the Box?

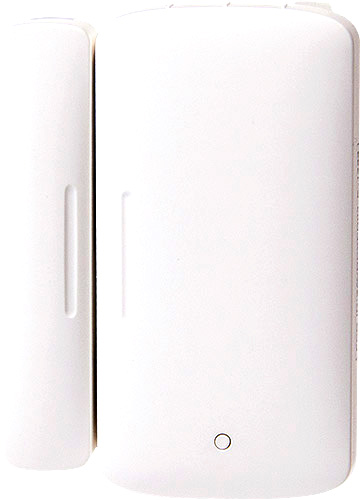

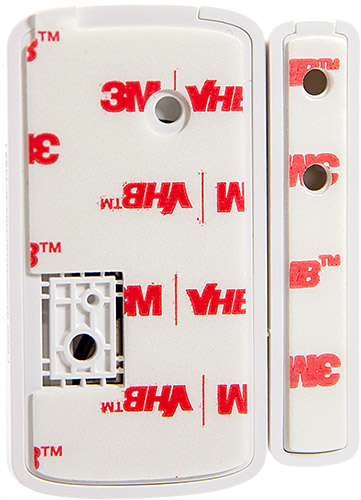

• Door / Window Sensor
• Magnet

Product Measurements

• Height: 2.34 in
• Depth: 0.46 in

• Width: 1.68 in
• Weight: 1.4 oz

Charging

• Replaceable CR2032 coin battery (Can typically last 5-7 years)

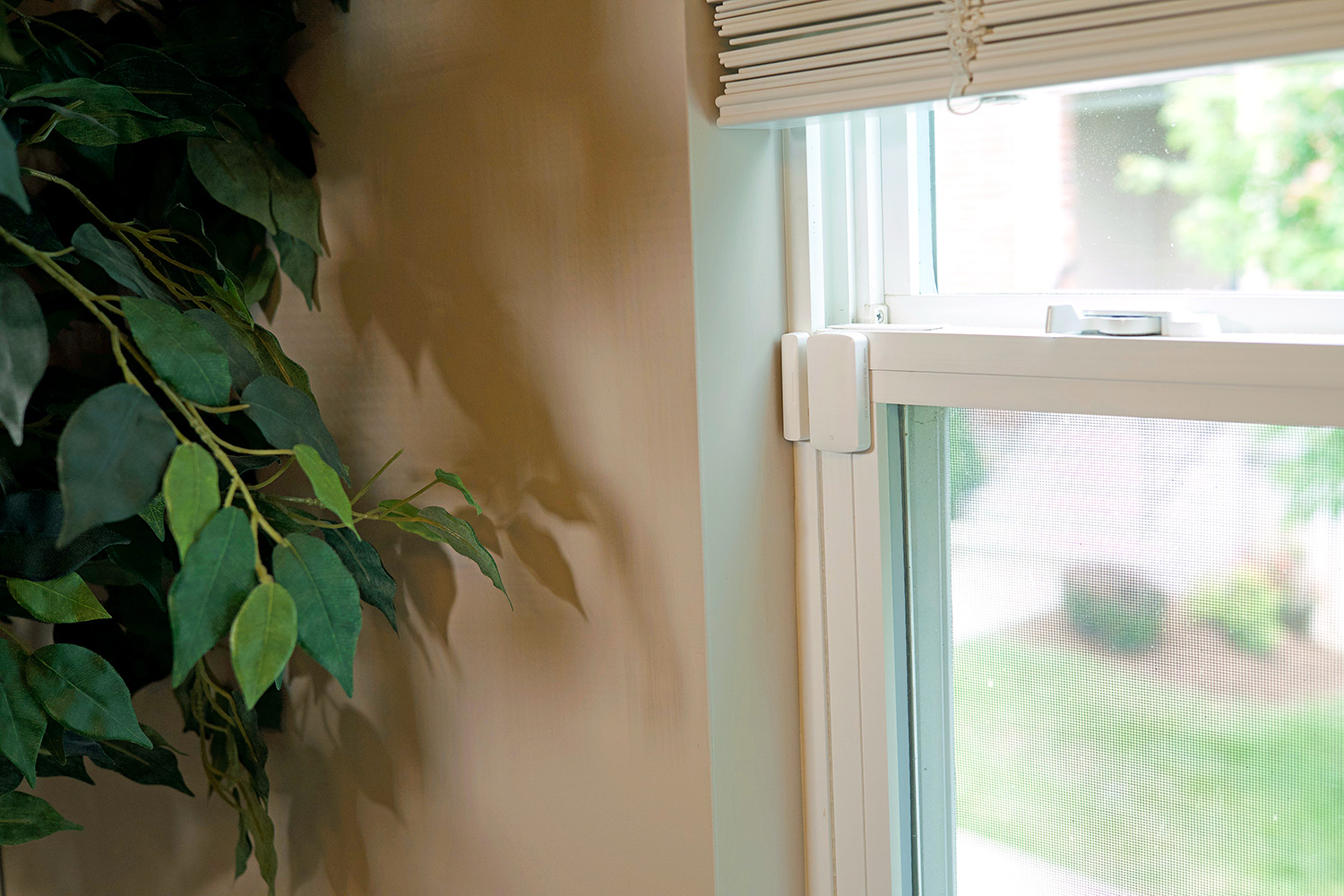

Placement Tips

• Indoor use only.
• Pair with the panel before mounting your sensor.
• Place on the opening side of doors and windows.
• The grooves must face each other.
• Sensors and magnets must be 1/4 inch or less apart, but not overlapping.
• Placing sensors where they touch will damage the sensor as the doors open and close.

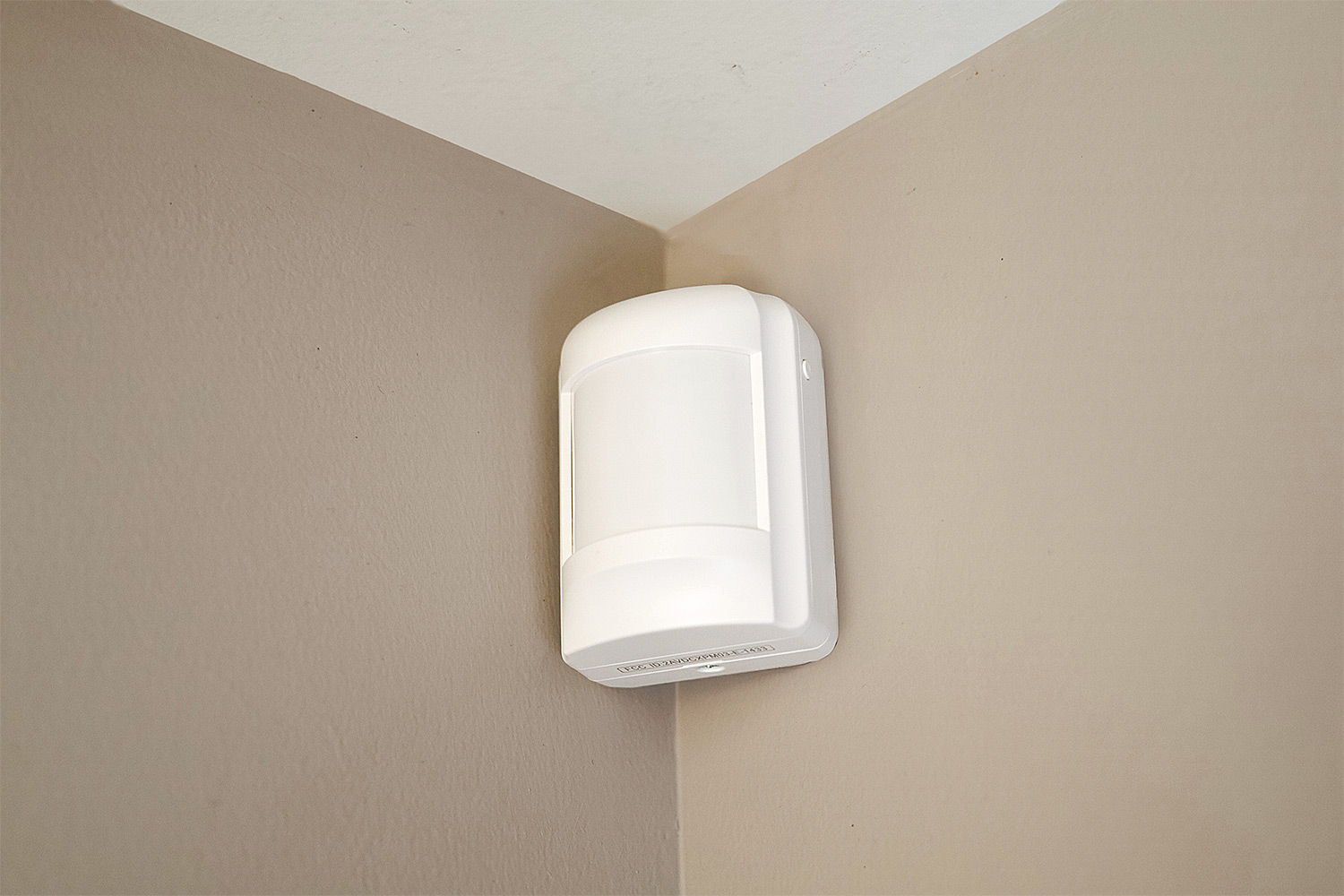

What Comes in the Box?

• Motion Sensor
• Mounting Screws
• Wall Anchors

Product Measurements

• Height: 2.53 in
• Width: 1.49 in

• Depth: 0.53 in
• Weight: 1.0 oz

Pin Guide

Your Motion Sensor has two separate configuration options:

1. Pet Size Pins - This can help reduce false alarms caused by pets.
   NOTE: These are NOT exact weights. The closer a pet gets to the Motion Sensor, the more likely they are to trigger an event, despite their size and the pin configuration.
2. Distance Pins - Adjust the coverage distance of the Motion Sensor.

Charging

• Replaceable CR123A battery.

Placement Tips

• Indoor use only.
• Pair with the panel before mounting your sensor.
• Place 6-7 feet above the ground.
• Do not install near any heat sources to prevent false alarms.
• Before mounting, see Pin Guide.

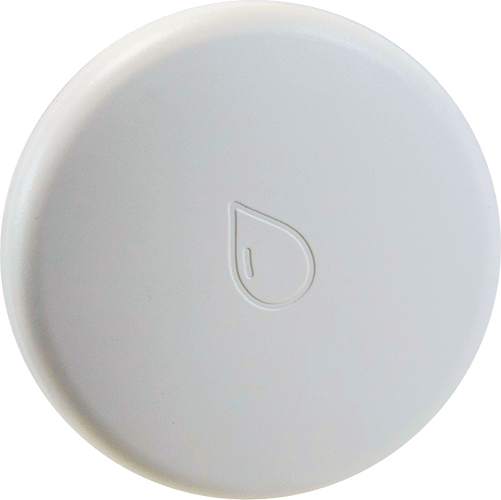

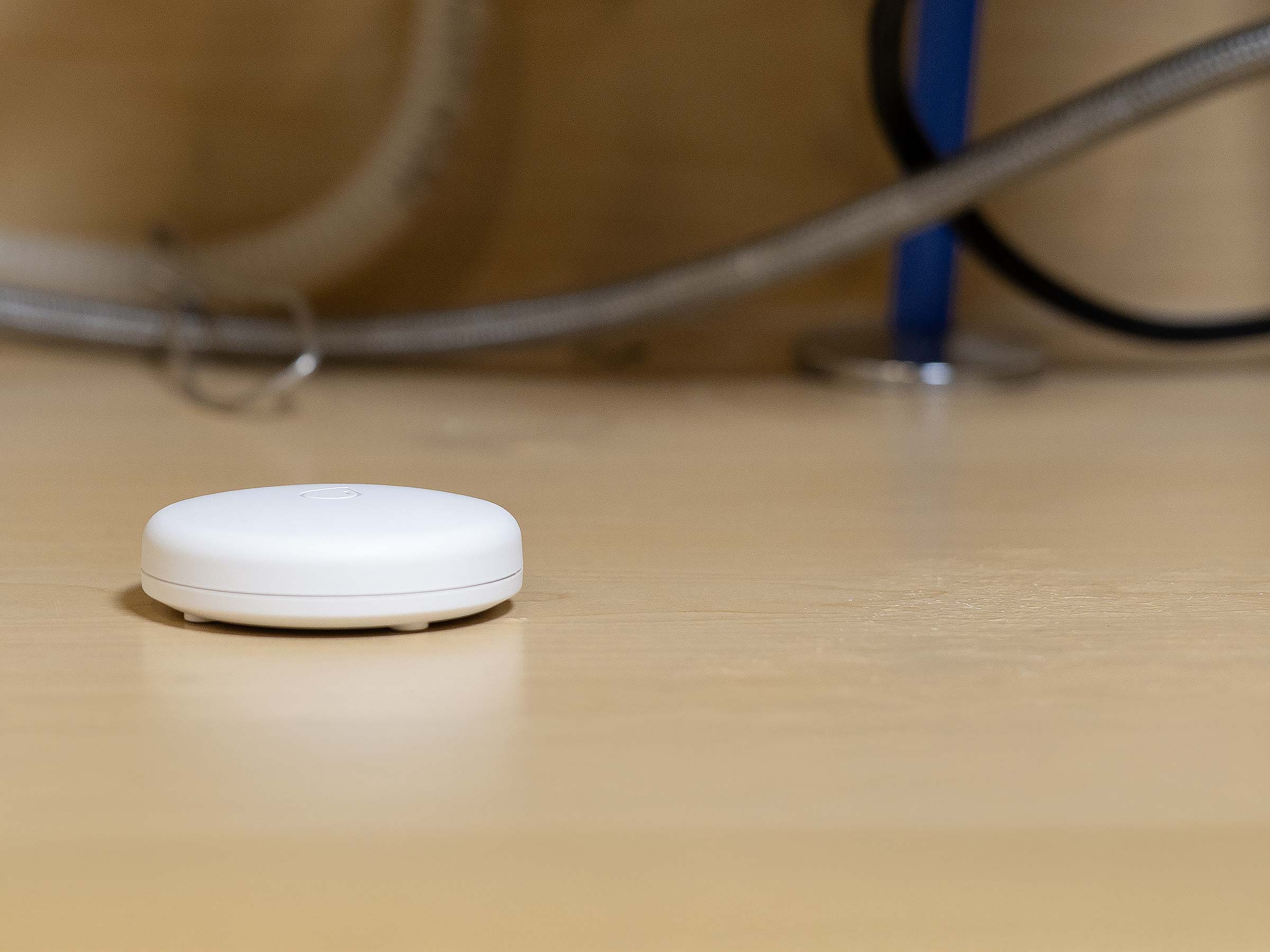

What Comes in the Box?

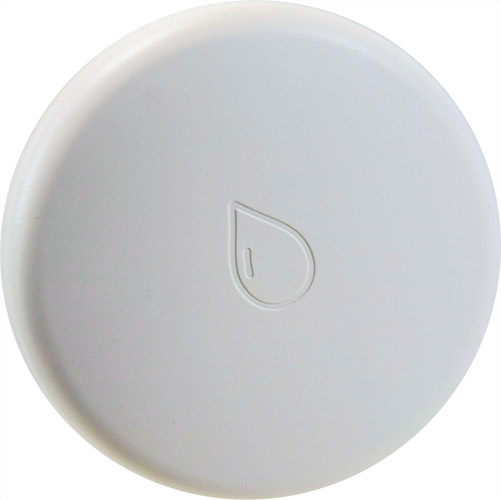

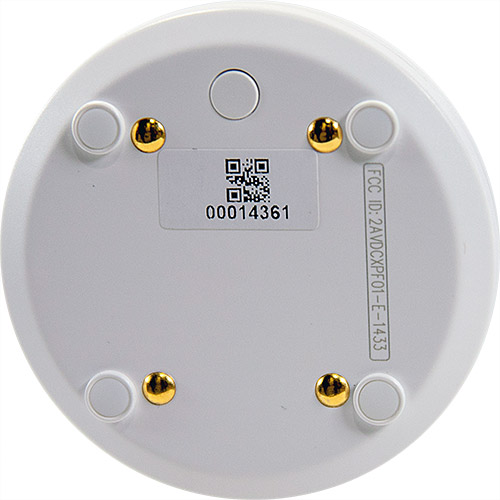

• Flood & Temperature Sensor

Product Measurements

• Diameter: 2.48 in
• Depth: 0.68 in
• Weight: 1.3 oz

Charging

• Replaceable CR2450 battery.

Placement Tips

• Indoor use only.
• Place on a flat surface with the underside facing the floor. No mounting brackets or screws required.

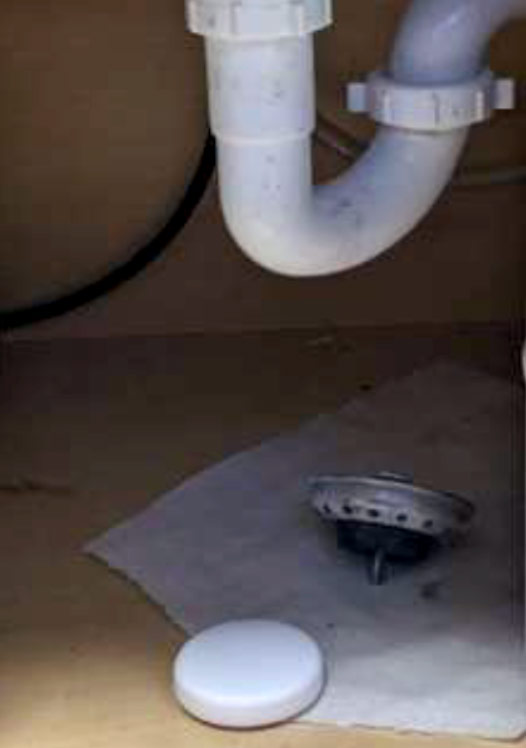

• Water Detection: Place in areas prone to leakage and where water is most likely to pool.
• Extreme Temperature Detection: Place in areas where temperatures may reach below 41°F or above 95°F.
• You can enable or disable any of the sensor's modes from the panel.

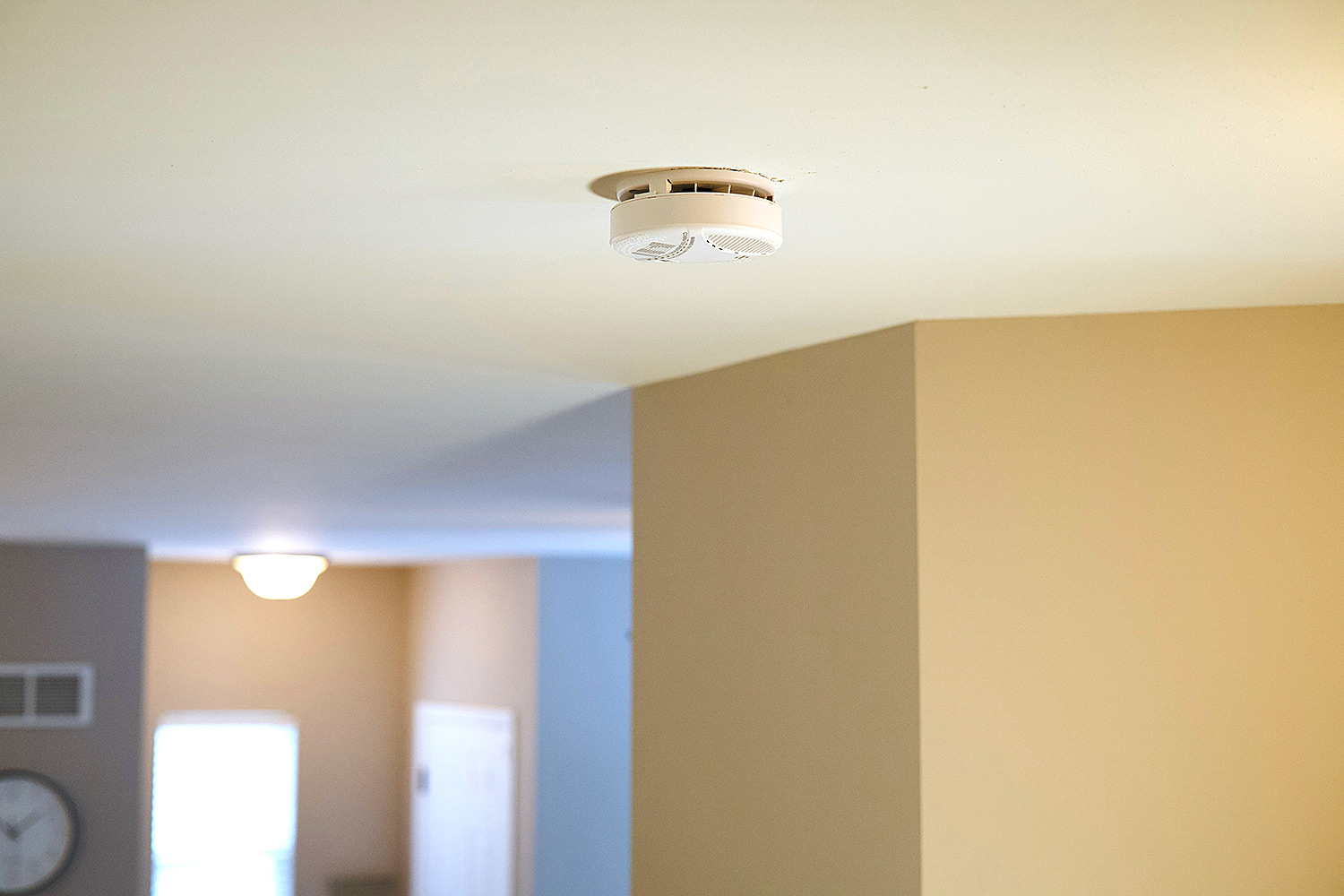

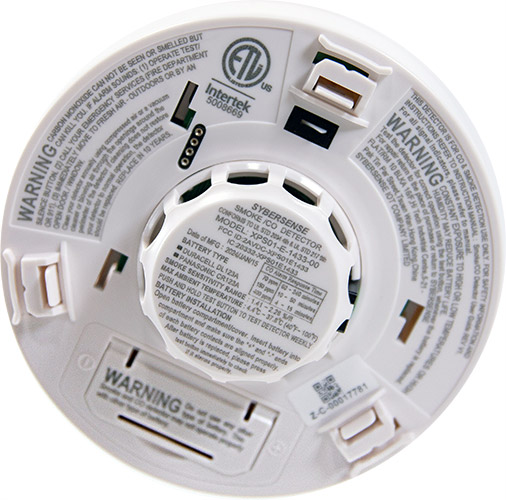

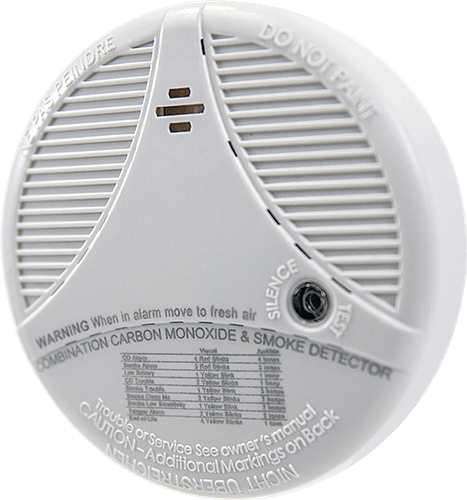

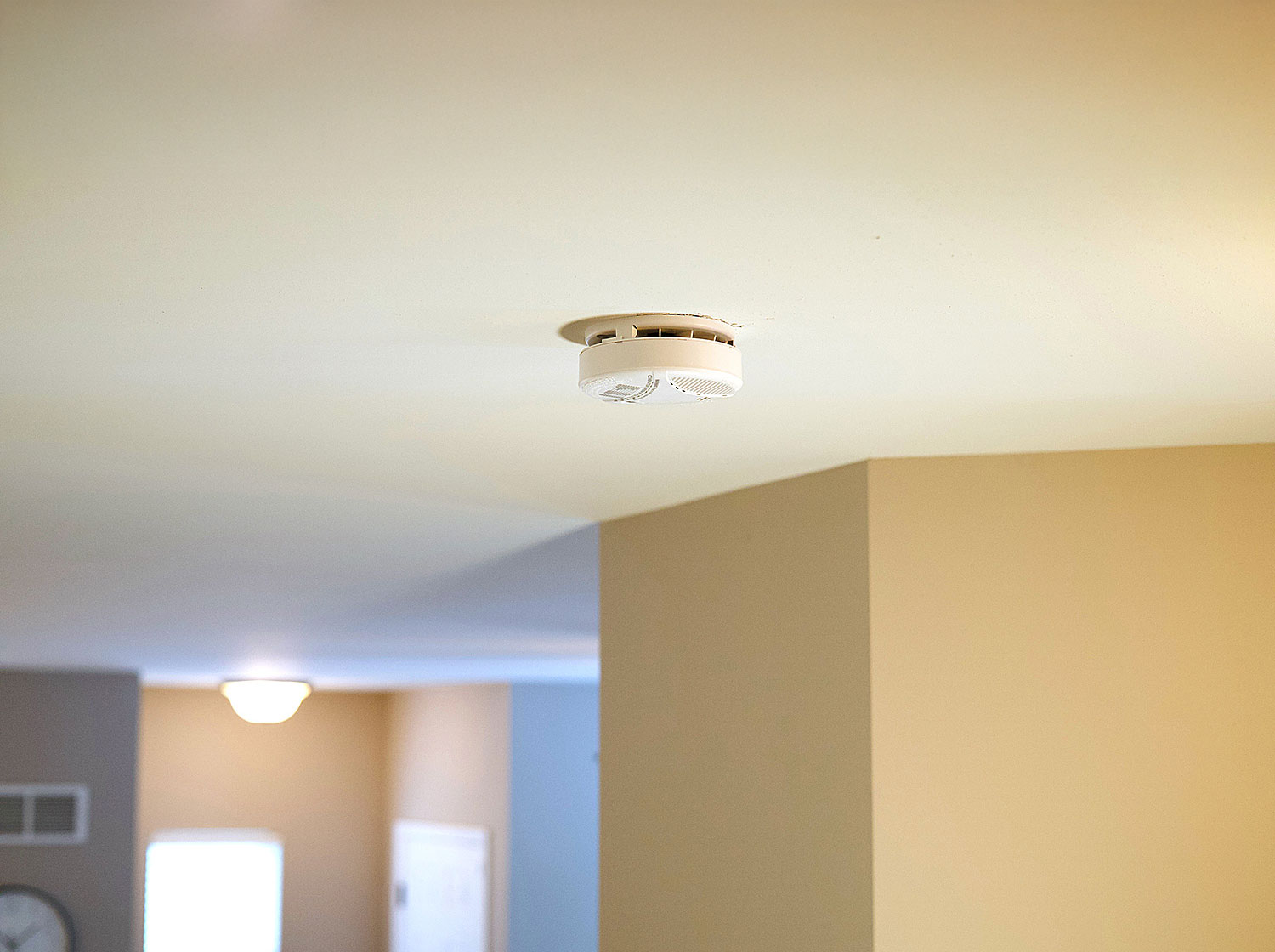

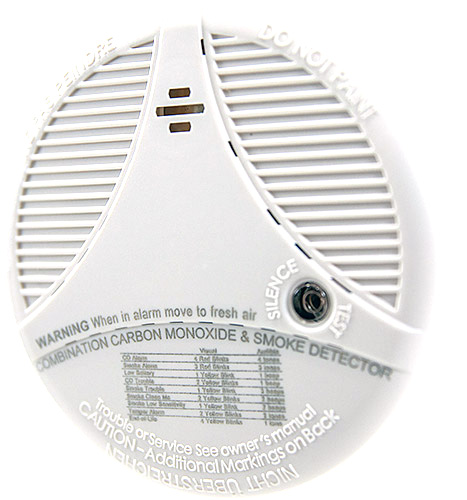

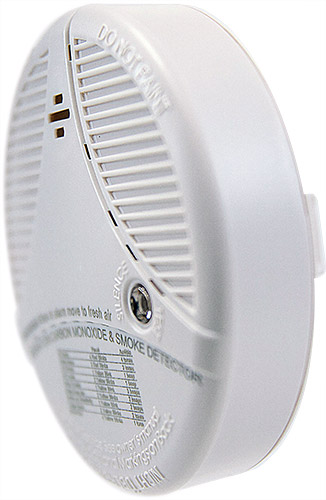

What Comes in the Box?

• Smoke & CO Detector

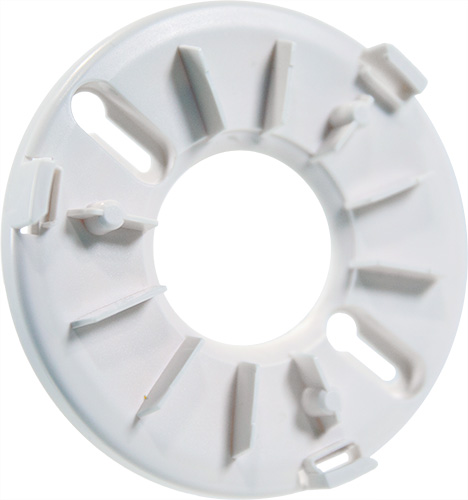

• Mounting Bracket
• Screw

• Ceiling Anchors (2)
• 3V Lithium Battery

Product Measurements

• Height: 1.81 in (with base)
• Diameter: 4.92 in

Charging

• Replaceable 3V CR123A Lithium battery.

Placement Tips

• Mount on the ceiling, following the instruction manual.
• Do not mount in a kitchen or bathroom.
• Place on a flat surface.

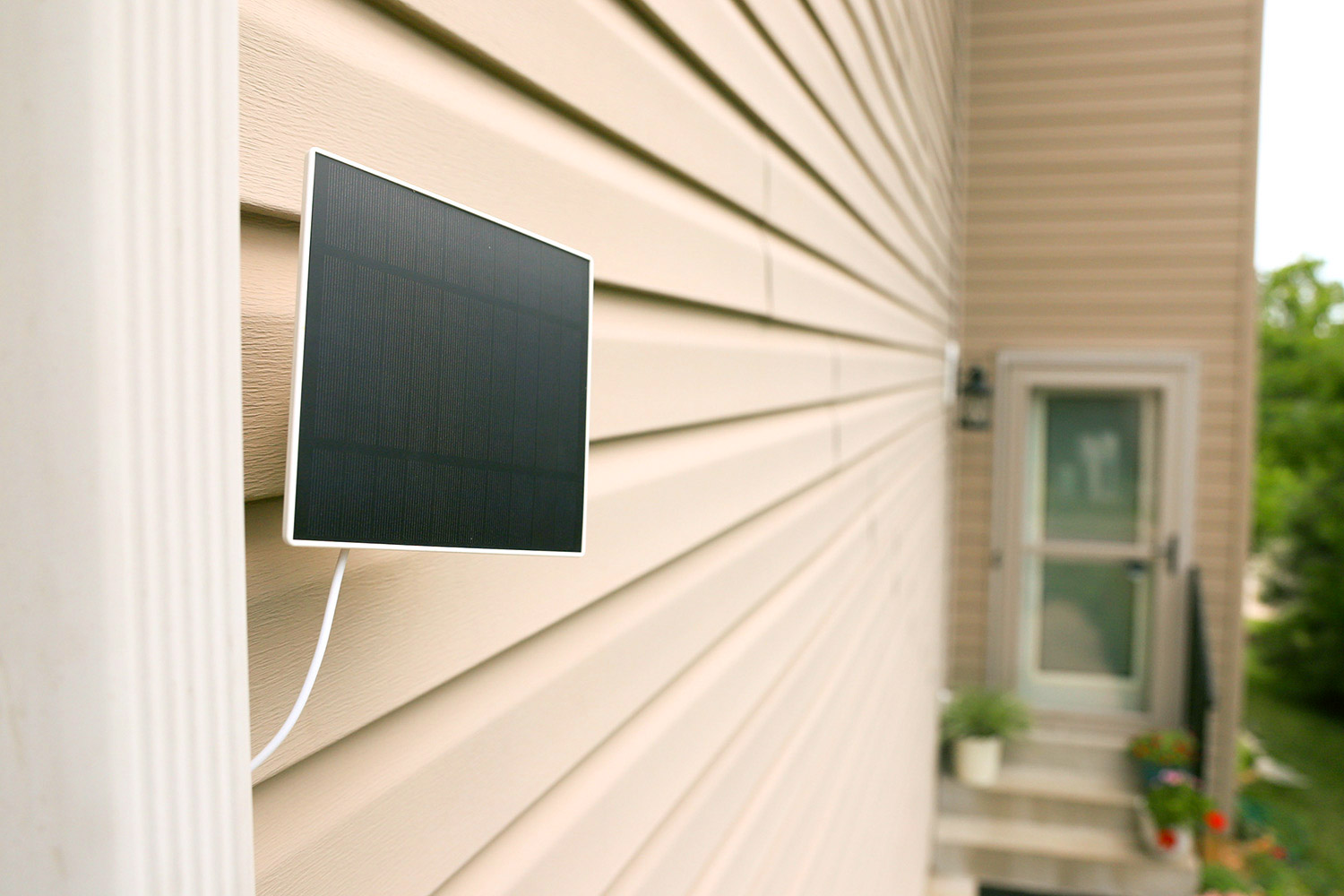

What Comes in the Box?

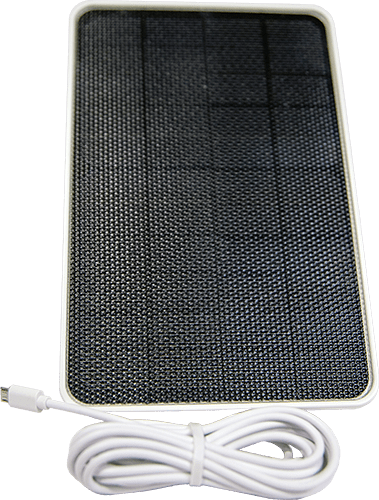

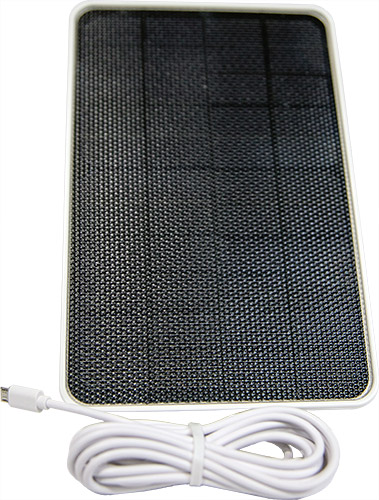

• Solar Panel
• 10 ft Cable
• Mounting Bracket

• Wall Screws (3)
• Wall Anchors (3)

Product Measurements

• Height: 6 in
• Width: 8 in

• Depth: 4 in
• Weight: 1 lb

Charging

• Provides solar power to wireless cameras and wireless video doorbells.

Placement Tips

• Place the solar panel in a location that consistently receives sunlight.
• The solar panel is set in place and does not move.
• The bracket’s hinge allows 360° positioning.

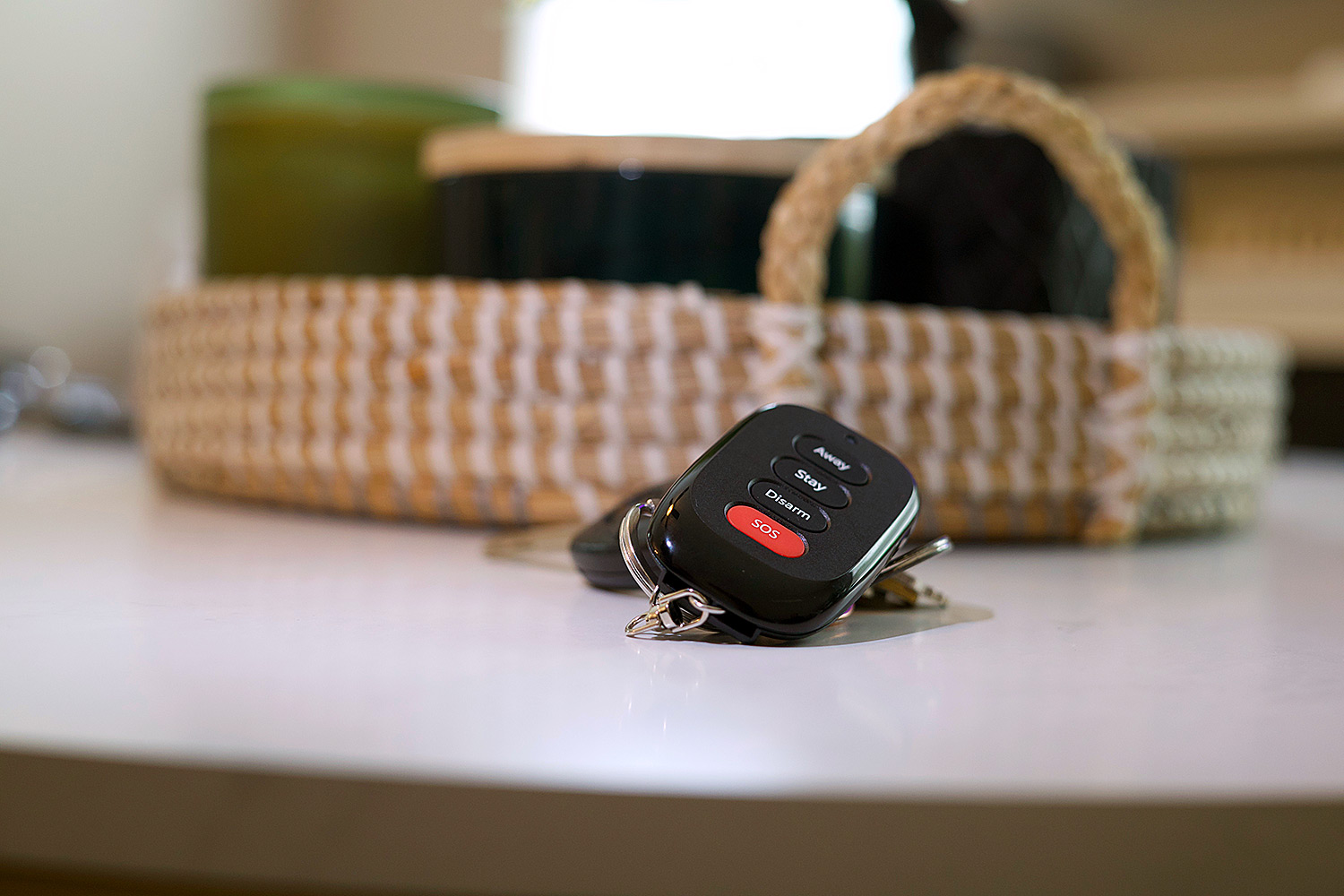

What Comes in the Box?

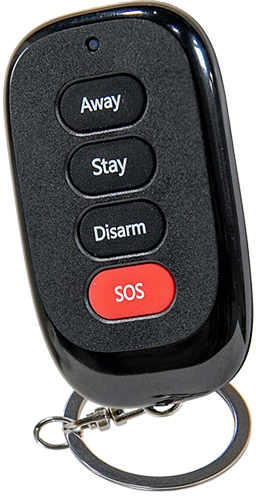

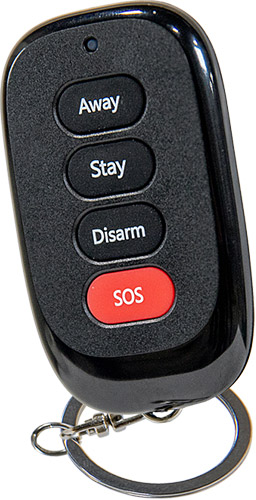

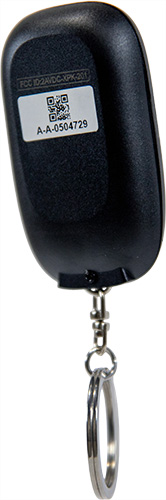

• Key Fob

Product Measurements

• Height: 2.53 in
• Depth: 0.53 in

• Width: 1.49 in
• Weight: 1.0 oz

Charging

• Replaceable CR2032 coin battery. (Can typically last 5-7 years)

Button Activity

• Away: Activates Away (Leaving) mode.
• Stay: Activates Stay (Staying) mode.
• Disarm: Disarm the system.
• SOS: Activates the alarm and calls for help.
  *The monitoring company will NOT contact you first.

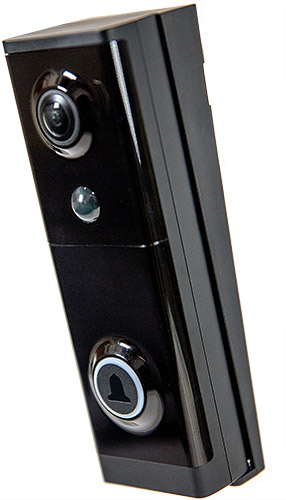

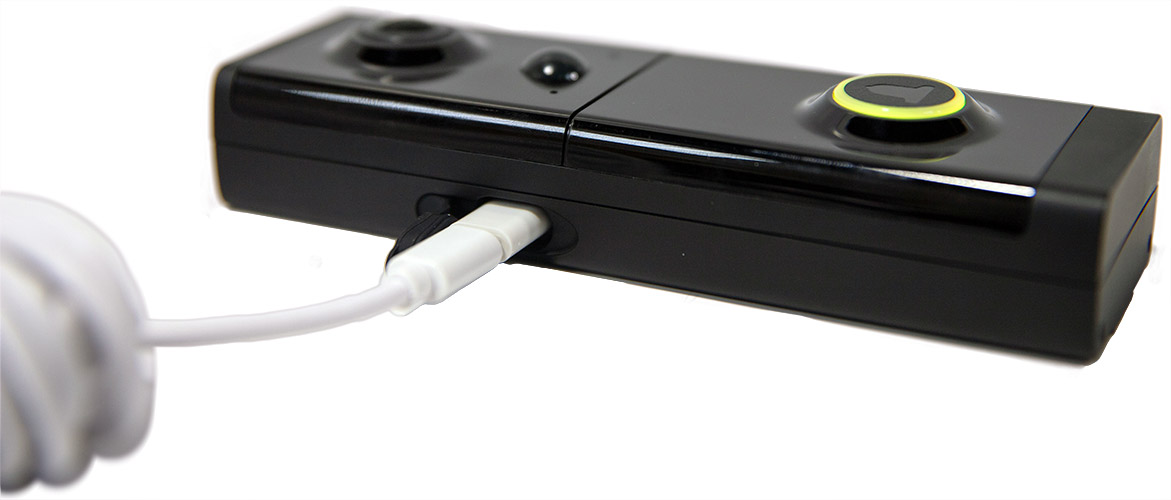

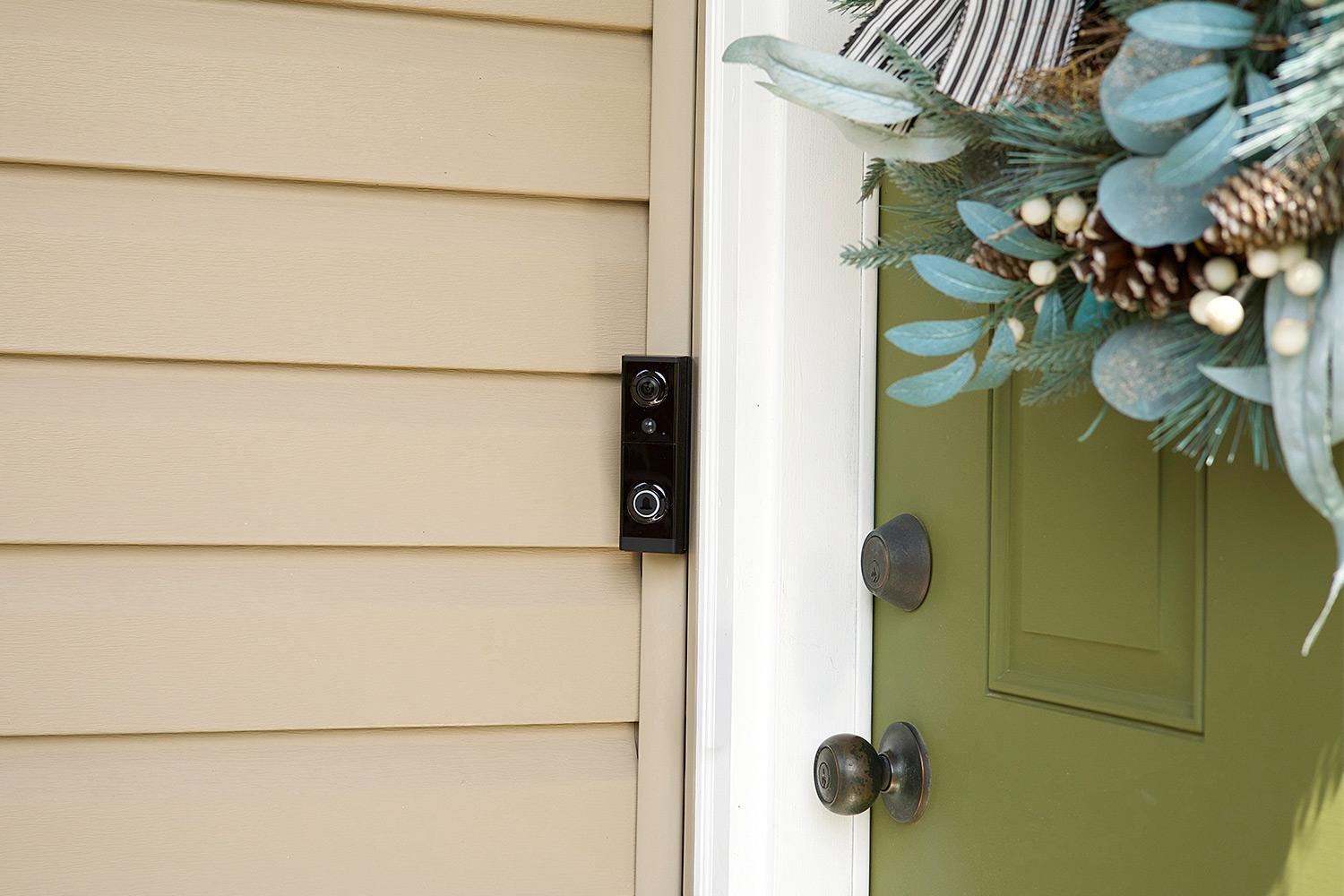

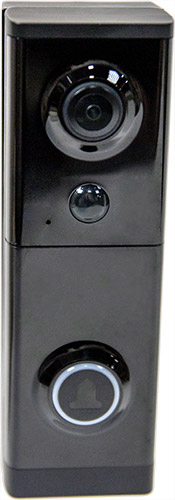

What Comes in the Box?

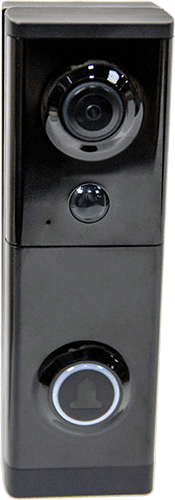

• Wireless Video Doorbell

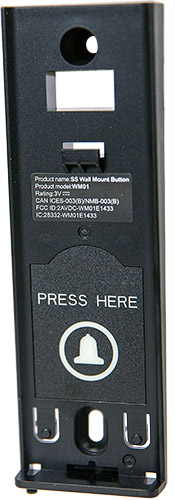

• Mounting Bracket w/ Auxiliary Doorbell
• Angle Wedge
• Wall Anchors (2)

• Wall Screws (2)
• Bracket Locking Screws (2)
• Security Screws (4)
• Security Screwdriver

Product Measurements

• Height: 5.43 in
• Width: 1.77 in
• Depth: 0.94 in

• Weight: 6.52 oz

Placement Tips

• The ideal height is 4 ft above the ground.
• If needed, use the optional angle wedge to adjust the camera viewing angle.

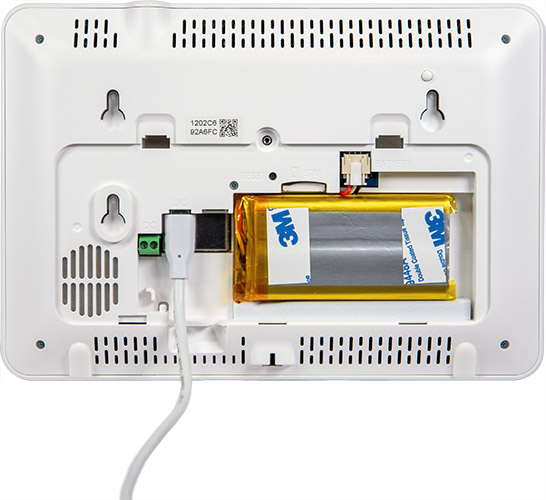

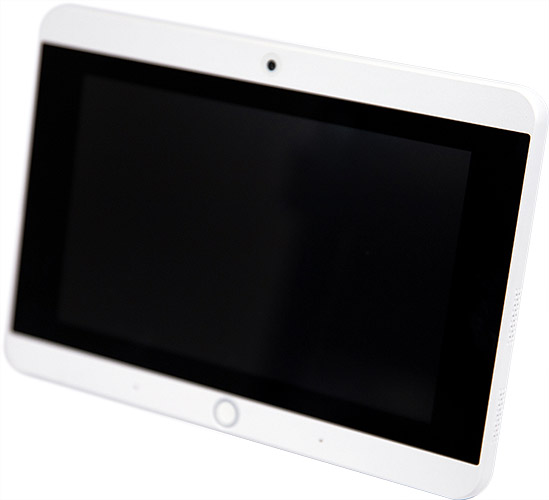

What Comes in the Box?

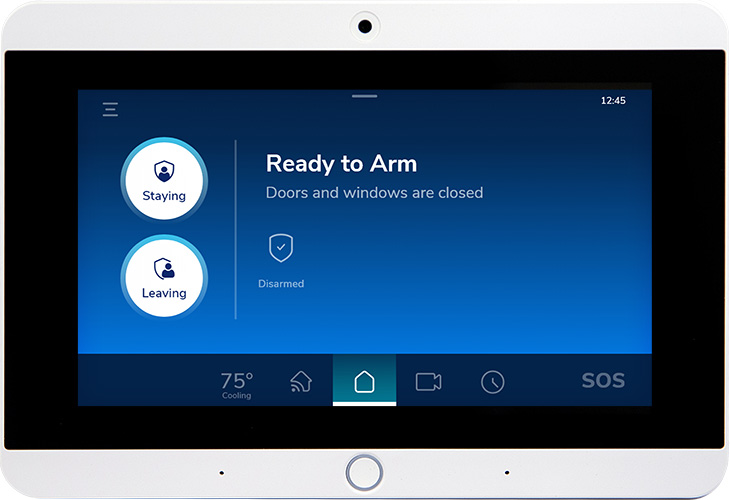

• Touchscreen Security Panel
• Power adapter plug
• Panel security screw
• Wall-mount bracket

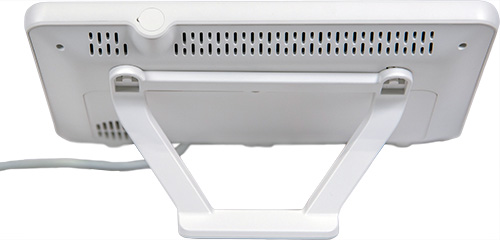

• Countertop stand
• Wall screws (5)
• Wall anchors (5)

Charging

• Built-in 24-hour backup battery.
• Power cable plugs into a regular outlet and should remain plugged in.

Product Measurements

• Height: 5.25 in
• Width: 7.75 in

• Depth: .75 in
• Weight: 17 oz

Placement Tips

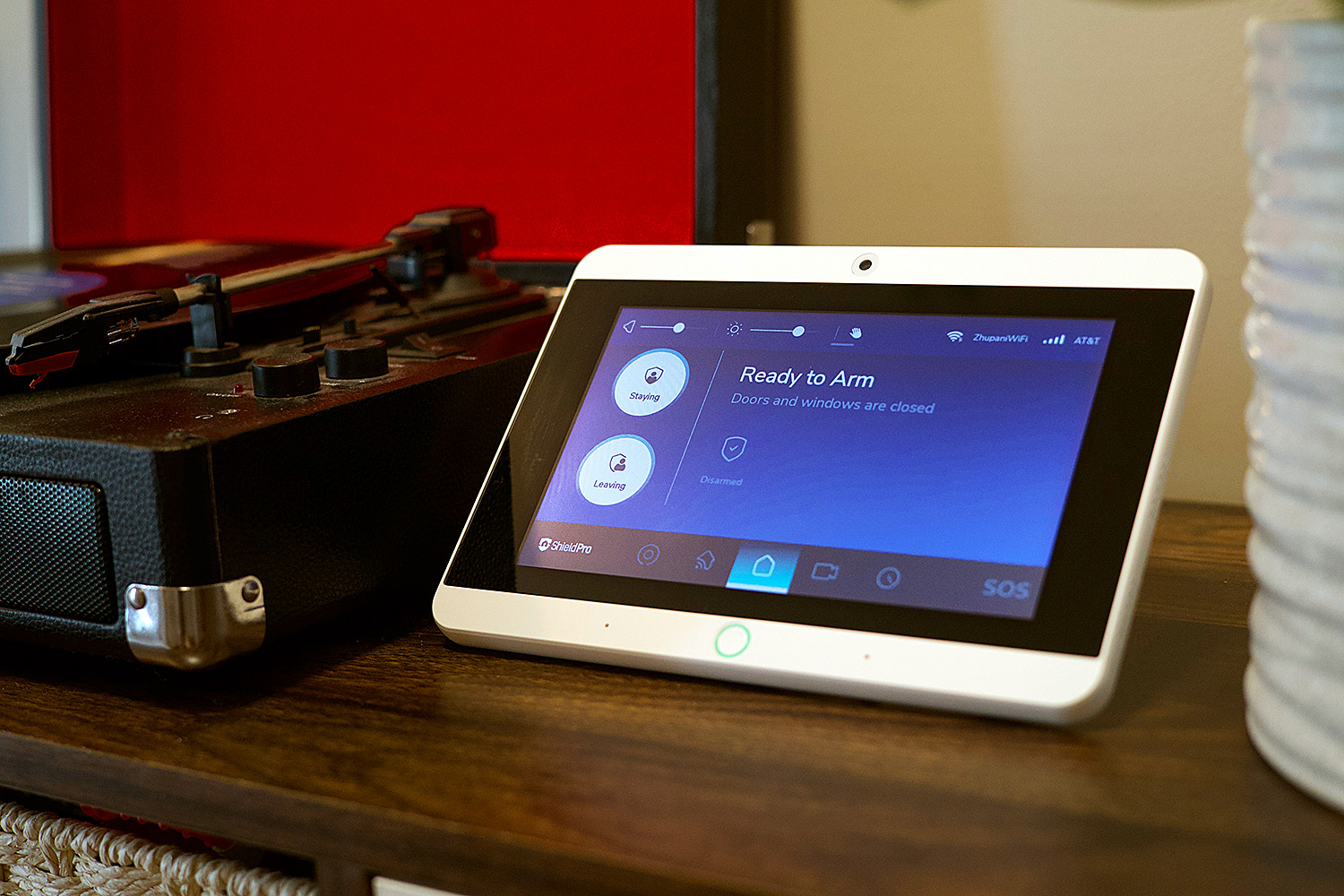

• Plug into power and use either the table stand to rest on a table or counter, or use the wall mount to mount to a wall.
• Must be within reach of a power outlet.
